Compact Power with Deep Musicality

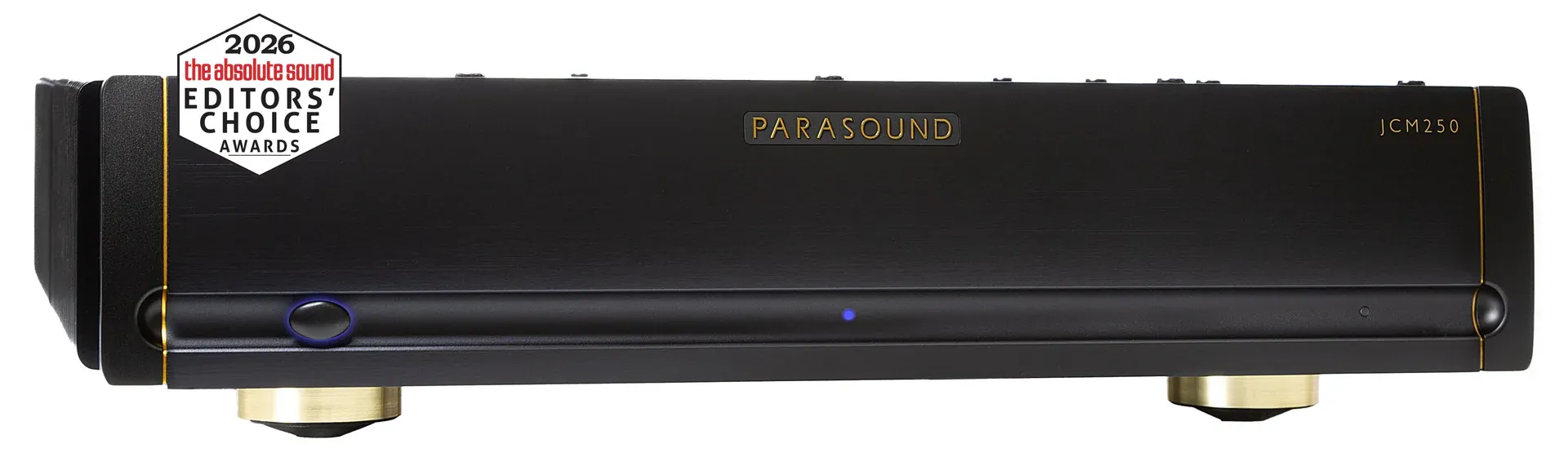

The JCM250 is a high-performance monoblock amplifier designed for listeners who want serious power without excessive size. Whether you’re driving demanding full-range speakers or crafting a powerful home theater front-end, it delivers authority and finesse—even when the music gets intense. Designed by John Curl, the JCM250 runs high-bias Class A/AB with up to 8 W in pure Class A (High Bias; 4 W in Low Bias) and delivers 250 W into 8 Ω, 450 W into 4 Ω, and 800 W into 2 Ω with 100 A peak current. The circuit is direct-coupled (no capacitors in the audio path) with a JFET input stage and MOSFET driver stage, plus XLR/RCA inputs and loop-outs for effortless bi-amping. Integration is simple with 29 dB / 23 dB gain options, 12 V trigger or audio-sense auto-on, and a 2U chassis that’s easy to rack. Parasound also equips the input stage with Bybee Music Rails™ high-frequency filters. The Absolute Sound Editors’ Choice 2026 Winner

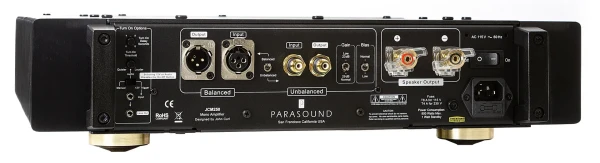

Circuitry designed by legendary John Curl Ultra-high bias Class A/AB operation Stable with speaker impedance dips below 1Ω Bybee Music Rails™ - active high frequency filters for input stage John Curl driver stage employs a cascode circuit for greater open loop bandwidth & superior linearity Gain switch to select 29 dB or 23 dB gain for optimum compatibility with high gain preamps or extremely efficient speakers CHK Infinium, custom 5-way speaker binding posts for easy bi-wiring Neutrik locking XLR balanced input & loop output jacks Vampire 24k gold-plated RCA input & loop output jacks Direct-coupled signal path, no capacitors or inductors in the audio path JFET input stage, MOSFET driver stage 16 beta-matched 15 ampere, 230V, 60 MHz bipolar output transistors Independent power supplies for input stage & driver stage Full power is rated all the way down to 2Hz for unrestricted low-end bass Harris hyper-fast soft-recovery bridge diode rectifiers REL & Nichicon Muse capacitors DC servo & relay protection circuits AC turn-on inrush surge protection with relay bypass Automatic turn-on by 12 V trigger or audio sensing 2 rack space chassis with rear carry handles
