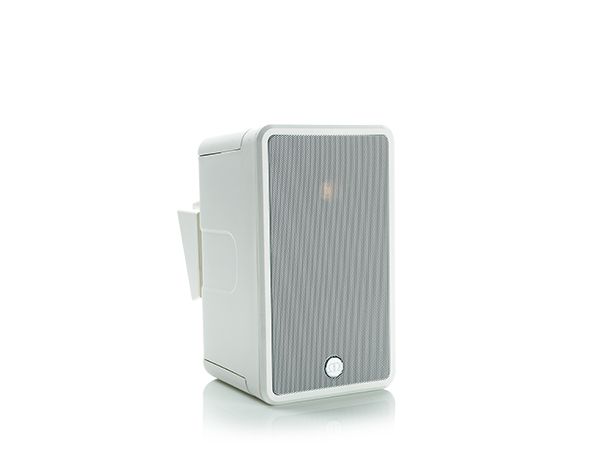

Technology •Quick and easy installation •High performance C-CAM tweeter and driver technology •Robust solid sealed, high density polypropylene enclosure - UV rated. •Full installation flexibility: 175º rotational bracket, (it also features angled sections and screw holes to provide corner fixing.) •15º angled wedge supplied for additional bracket versatility •Anchor point for security chain attachment •ABR (Auxiliary Bass Radiator) for added low frequency punch •Aluminium grilles prevent rust •Textured white and black finish, paintable to suit décor (paint mask supplied) •Rotational 'M' logo to align with portrait or landscape positions. Frequency Response 75 Hz — 30 kHz Sensitivity (1W@1M) 87 dB Nominal Impedance 8 ohms Maximum SPL 106.8 dBa Power Handling (RMS) 80 W Recommended Amplifier Requirements 10 — 80 W Drivers 1 x 140 mm (5 1/2") C-CAM bass/ mid-range driver 1 x 25 mm (1") C-CAM Gold Dome tweeter External Dimensions (H x W x D) 285 mm x 172.5 mm x 158.5 mm (111/4" x 613/16" x 61/4") Overall Depth (Including Bracket) 210 mm (81/4") Total Bracket Pivot Angle 87.5 degrees (from central position) Fixed Angled Block (Portrait) 15 degrees Connection Gold plated 'push' type terminals Environmental Protection Rating IP55 Colour / Finish White/Black Weight (packaged) 3.66 kg (8 lb)
