THE PERFECT ADD ON

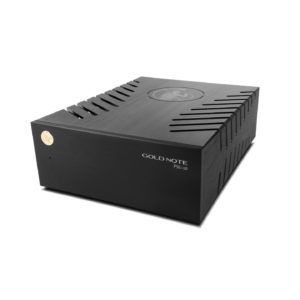

The PSU-10 EVO has been engineered with the finest audio grade components to enhance the performance of DS-10, DS-10 PLUS and CD-10  even further. The PSU-10 EVO features a 4-transformer power supply stage enhanced with ultra-low-noise voltage regulators. The power supply stage takes advantage of a 4-transformer layout with 3 transformers entirely dedicated to the power supply and 1 for the inductive filter. The Dual Choke Hybrid design features an inductive filter on the analogue stage and is powered by a double inductor, driving both the negative and positive high-current stages. This proprietary technology perfectly filters the current to eliminate interference and electrical noise from the AC power system achieving ideal insulation, an ideal working environment for the electronics to perform at their best ULTRA-CLEAN POWER The ultra-clean power generated by the PSU-10 EVO allows DS-10 and CD-10  to deliver greater dynamics, better resolution, and even finer details resulting in improved realism, musicality as well as control. Please note: the PSU-10 EVO is not compatible with the PH-10 Phono Stage TECHNICAL SPECIFICATIONS MAIN FEATURES TECHNICAL FEATURES Four rail audio grade power supply Two ultra-low-noise voltage regulators MAXIMUM VARIATION OF OUTPUT VOLTAGE 0,05 % LINE NOISE REJECTION >80dB COMMON MODE NOISE REJECTION >80dB FULL POWER RESPONSE TIME <2,5µsec
