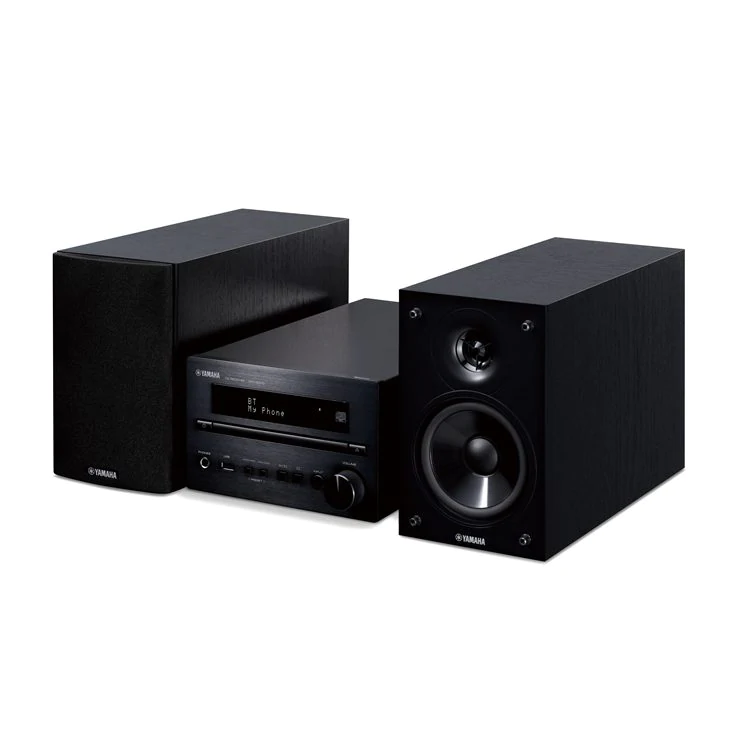

Features Bluetooth® wireless audio streaming Hi-res audio (192 kHz / 24-bit FLAC / WAV) via USB Authentic Hi-Fi design and tuning FM tuner Subwoofer pre-out Bluetooth Wireless Streaming Connect wirelessly via Bluetooth for quick and simple audio playback from smartphones and other Bluetooth devices. Whether listening to your favourite music streaming services on your phone or watching videos on your tablet, get the most out of your sound by streaming it to your micro Hi-Fi system. Hi-res Music from USB Playback of 192 kHz / 24-bit FLAC and WAV files via USB reflects the Hi-Fi origins of this system. This support offers listeners the ability to experience the best in Hi-Fi listening. PianoCraft Design The PianoCraft series has for many years, embodied authentic Hi-Fi performance from a compact unit. Inheriting design philosophies from Yamaha Hi-Fi components ensure quality Hi-Fi performance from any PianoCraft product. Sophisticated Appearance The MCR-B270 maintains the design image of Yamaha Hi-Fi components - presenting an extremely high-class, sophisticated appearance. The centre unit has a front panel made of high-grade aluminium with a hairline finish that looks clean and elegant. Adding this stylish system to your room will enhance not just your listening but your home décor as well. VCCS Vibration Control Cabinet Structure Technology To prevent unwanted cabinet vibration, Yamaha developed an internal structure called VCCS (Vibration Control Cabinet Structure) that employs strategically placed pieces of a composite material providing excellent vibration isolation performance.
Center Unit Specifications Bluetooth Version/Profile: Ver. 4.2 / A2DP, AVRCP ; [Audio Codec] SBC, AAC Bluetooth Maximum Communication Range: 10 m / 32.8 ft. 10 in. (without interference) Disc Type: CD, CD-R, CD-RW (Audio CD, MP3, WMA) USB: Yes File Format: MP3, WMA, AAC, WAV(*1), FLAC(*1), AIFF(*1), ALAC(*2) --- (*1) 192 kHz / 24-bit; (*2) 48 kHz / 24-bit Tuner: FM Preset Memory: FM x 30 Headphone Jack: Yes (6.3 mm) Analog Audio Input: Yes (3.5 mm STEREO mini Jack × 1) Digital Audio Input: Optical: Yes Subwoofer output: Yes Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz): 0.05 % Output Power/Channel (6 ohms, 1 kHz, 10% THD): 20 W + 20 W
Speaker System Specifications Woofer: 11 cm (4-3/8") cone woofer Tweeter: 2.5 cm (1") dome tweeter Input Power (Max/Nominal): 30 W (Nominal) Frequency Response: 60 Hz-30 kHz Sensitivity: 84 dB / 2.83 V / 1 m Crossover Frequency: 6 kHz Impedance: 6 ohms
