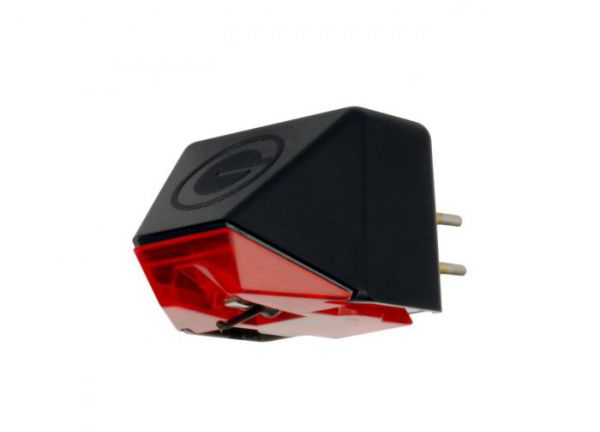

The Goldring philosophy is to promote the accurate replication of the original record production, maintaining the creative nuances, musicality and rhythm the artist intended you to hear. With the versatile E Series, this is easy to achieve; each is designed to be simple to fit to the majority of budget to medium priced turntables. The E1 cartridge, the first in the range, utilises a carbon-fibre reinforced cantilever and bonded, spherical (0.6 mil) stylus with a round shank. Carbon is an effective alternative to more premium aluminium or boron materials, producing comparable results in most entry level hi-fi applications. ColourRed CantileverCarbon Stylus profileSpherical Stylus radius0.6 mil Frequency range20 Hz - 20 kHz Channel balance1.5 dB at 1 kHz Channel separation>20 dB at 1 kHz Sensitivity3.5 mV (1 kHz @ 5 cm/sec) Static compliance20 mm/N Vertical tracking angle20° Load resistance47 kΩ Load capacitance100 - 200 pF Internal inductance400 mH Internal resistance410 Ω Cartridge mass6.9 g Fixing centres12.7 mm (0.5 in) Playing weight1.5 g - 2.5 g (2.0 g recommended)
